Tunnel kiln for resin bond grinding wheel
There are 18m, 20m,24m, 28m,36m, 42m and 58m which is designed and applied in production. The length is decided by the producing capacity while the section is designed according to the length.

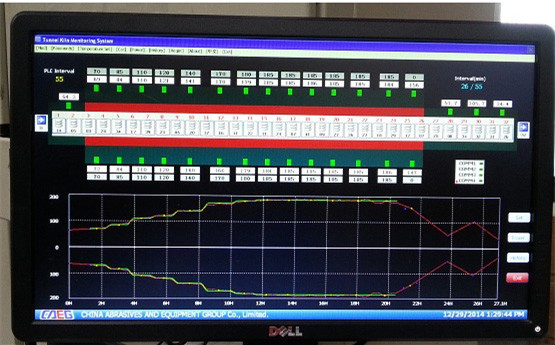

Computer monitoring and controlling system to run the tunnel kiln automatically.
Hydraulic trolley push unit to move the trolley automatically inside the tunnel.
Good exhaust system with air curtain to save energy and make workshop clean with any exhaust.
Wax collection system to collect the waste wax during manufacturing.
3. Technical Parameters:
(1)The highest running temperature: 200℃
(2)Temperature accuracy:±0.5℃
(3) Section temperature difference at stable running: ±2℃
(4) Kiln shaking range at continuous running: ≤ |3.0mm∣
(5) Noise: ≤60db
(6) Production Outlet Temperature : ≤80℃
(7) Kiln Wall Temperature: ≤60℃
(8) Power Consumption per D400mm Cutting wheel: 0.13 KW/h /piece
(9) Heating Way: gas/electricity/oil.
Length |
Inner size |
daily output(24H) |
car interval time |
width |
Height |
|
20m |
600 |
860 |
1920pcs |
90min/car |
28m |
960 |
1290 |
6400pcs |
90min/car |
36m |
1160 |
1350 |
9600pcs |
60min/car |
48m |
1200 |
1760 |
14400pcs |
40min/car |
58m |
1200 |
1500 |
28800pcs |
20min/car |
Output is calculated by D400mm Cutting wheel, load with 400~600pcs/car.
36m Daily output:10-12T (φ400 10000-12000pcs)
